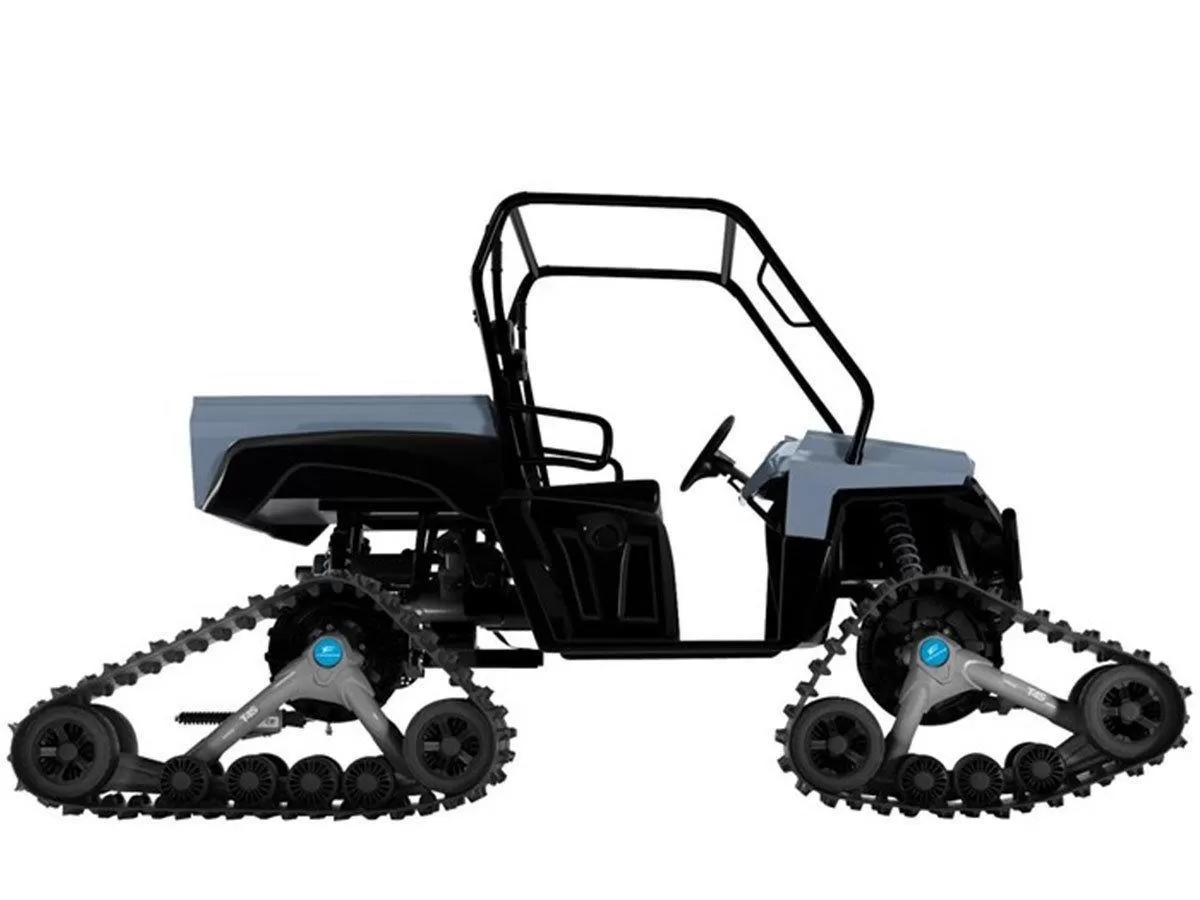

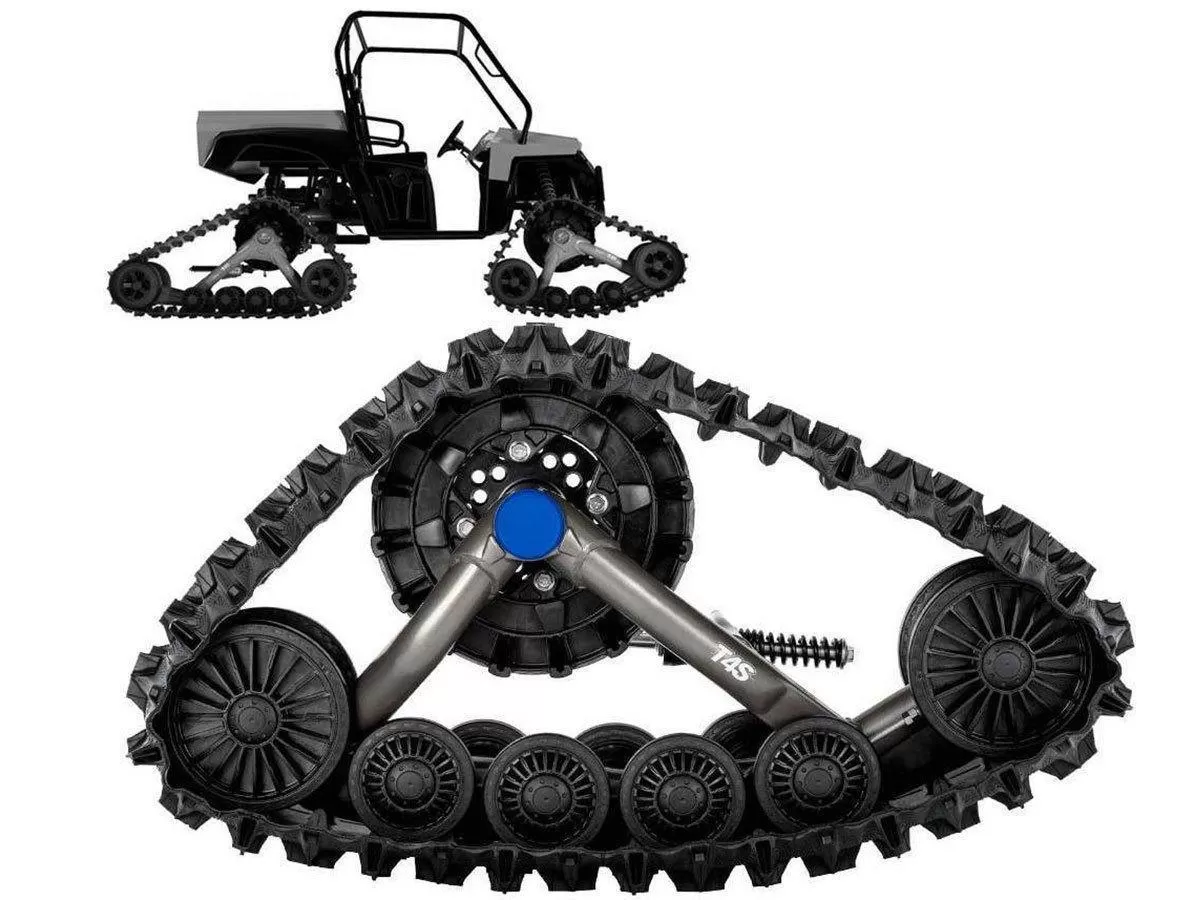

Gasenici za UTV Camoplast Tatou T4S

Gasenici za UTV Camoplast Tatou T4S

306.885 ден.


Шифра: 5807/
Можност на плаќање на 36 рати со
UNDERCARRIAGE
Weight Front: 95 lbs (43 kg)
Rear: 112 lbs (51 kg)
Offset (front & rear) Front: 26.5 in (673 mm)
Rear: 35 in (889 mm)
Total: 61.5 in (1562 mm)
Offset (side-to-side) 7 in (178 mm)
Length Front: 42.5 in (1081 mm)
Rear: 52 in (1321 mm)
Height 25 in (635 mm)
Mounting weight Approx. 6.25 lbs (2.75 kg)
Rubber Track
Width Front: 12.5 in (318 mm)
Rear: 13.5 in (343 mm)
Length Front: 98.5 in (2507 mm)
Rear: 116.7 in (2964 mm)
Lug height Front: 1 in (25 mm)
Rear: 1 in (25 mm)
Performance
Ground surface 2470 sq. in (1.59 sq. m)
Ground clearance (average) Increased by 5 in (127 mm)
Maintained speed (average) 65%

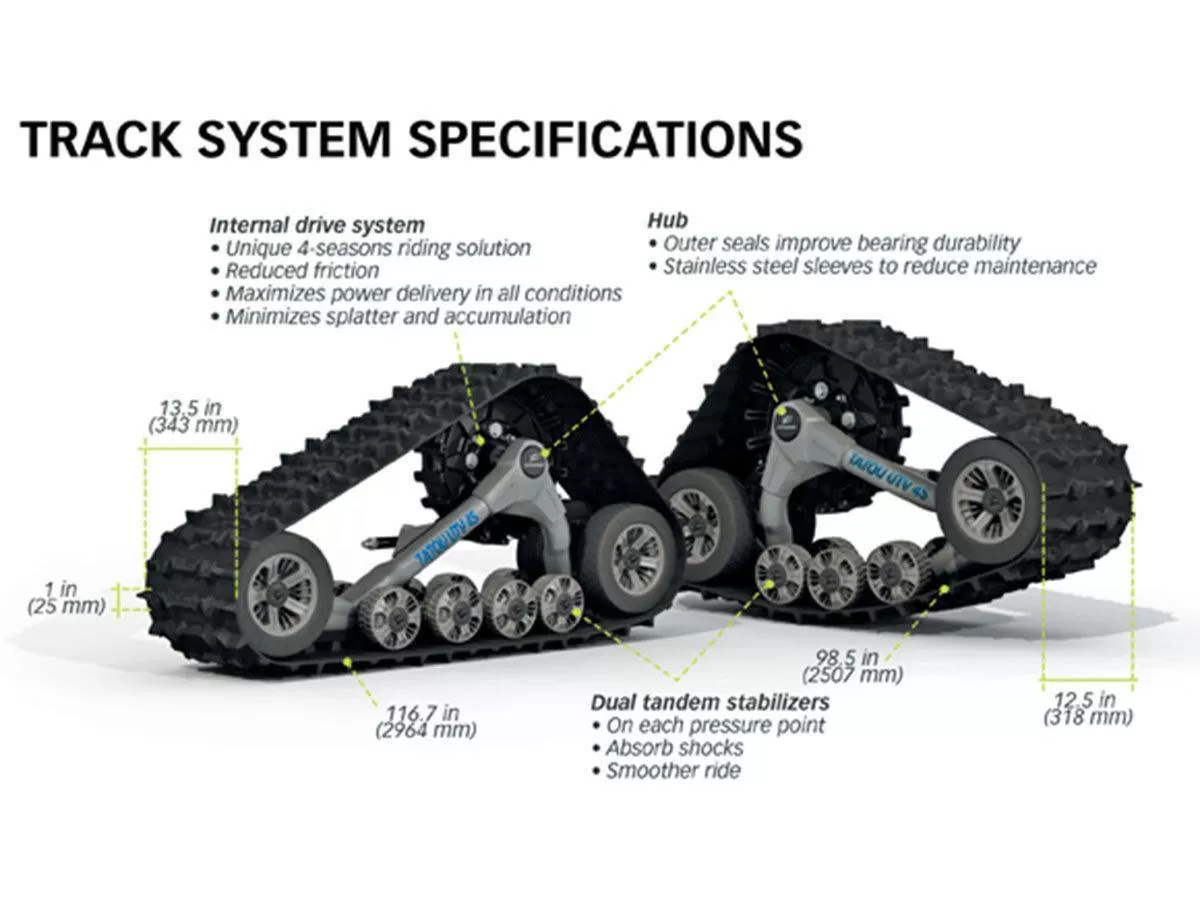

SPECIFICATION
Drive type Internal drive
Rubber track Front: Flat
Rear: Flat
Frame Carbon steel
Sprocket 15 to 18 teeth
Wheel 132 mm double bearing & sealed
mid-roller wheel (width: 50 mm)

255 mm double bearing & sealed
flat free tire
Anti-rotation Redesigned mild steel anti-rotation

Spring and progressive damper
Hub and bearing Cast steel mutli-bolt pattern hub

4 & 5-bolt pattern
Guide New extruded UHMW
Tandem & suspension New dual tandem on each pivot
point
