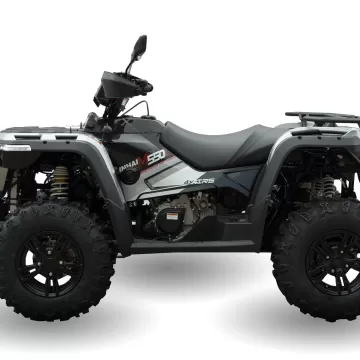

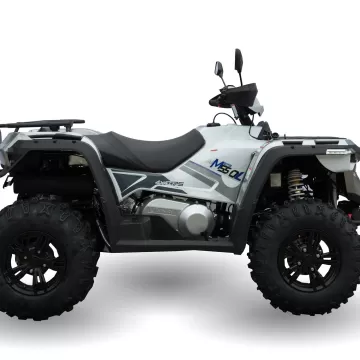

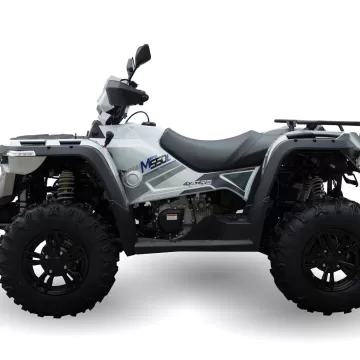

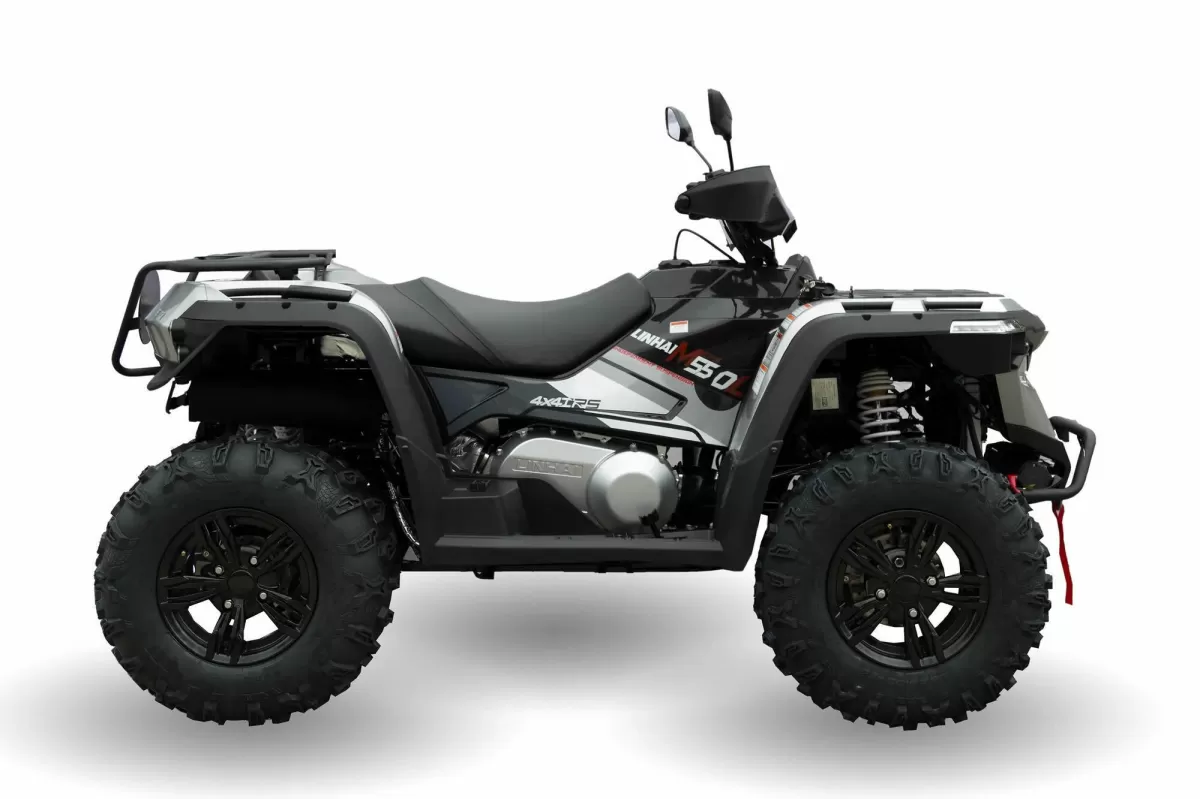

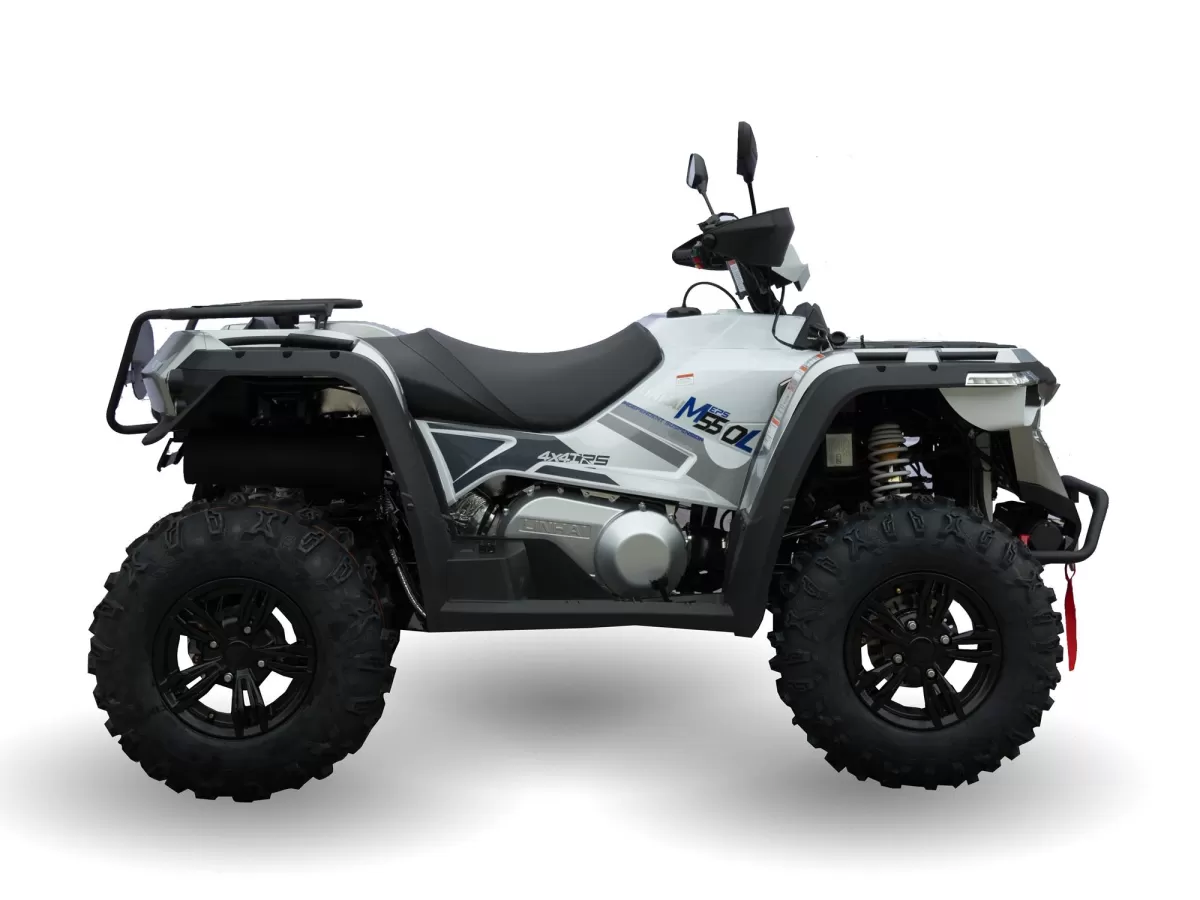

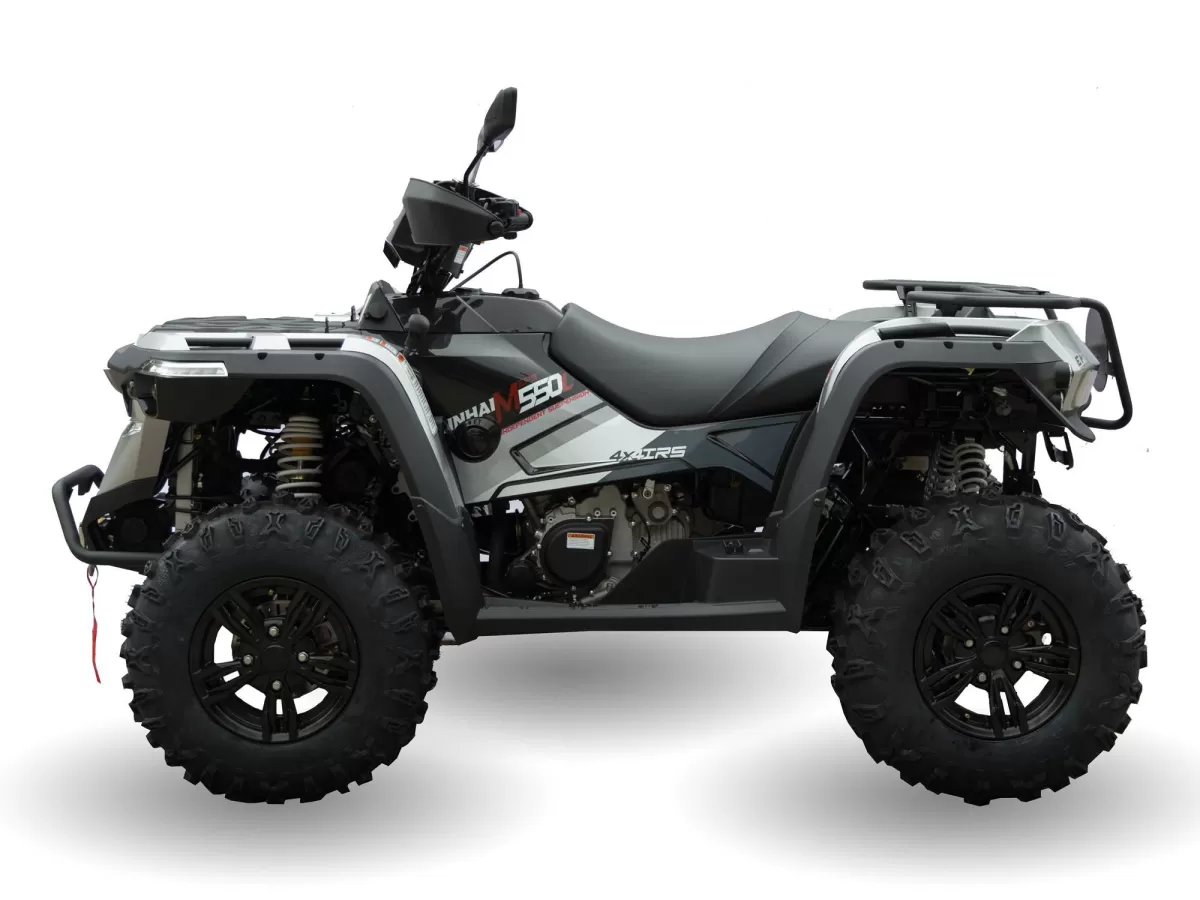

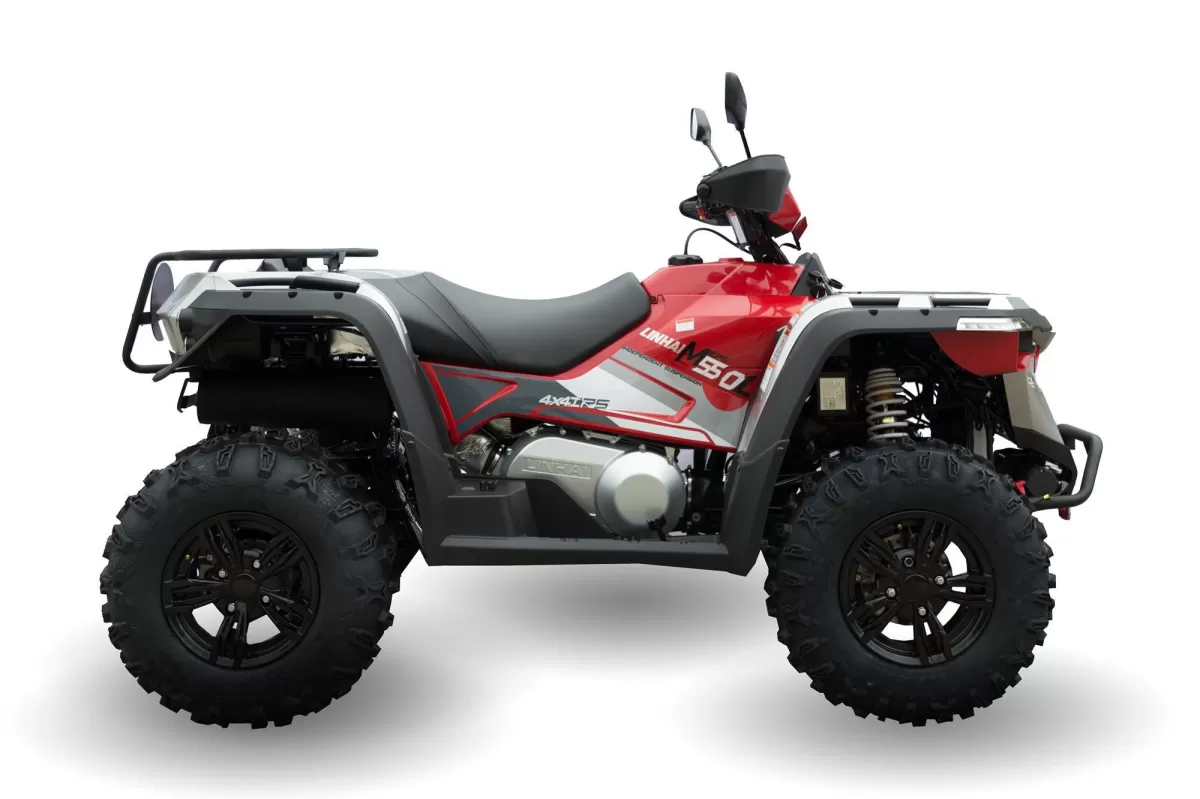

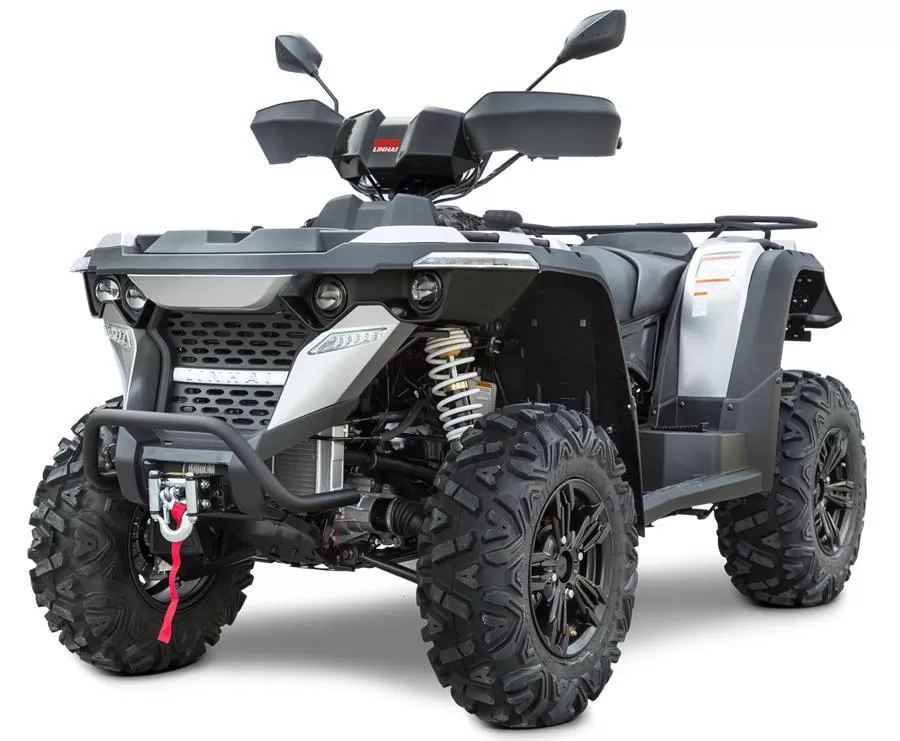

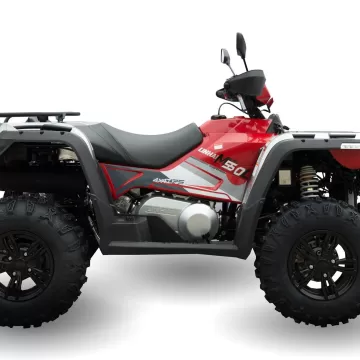

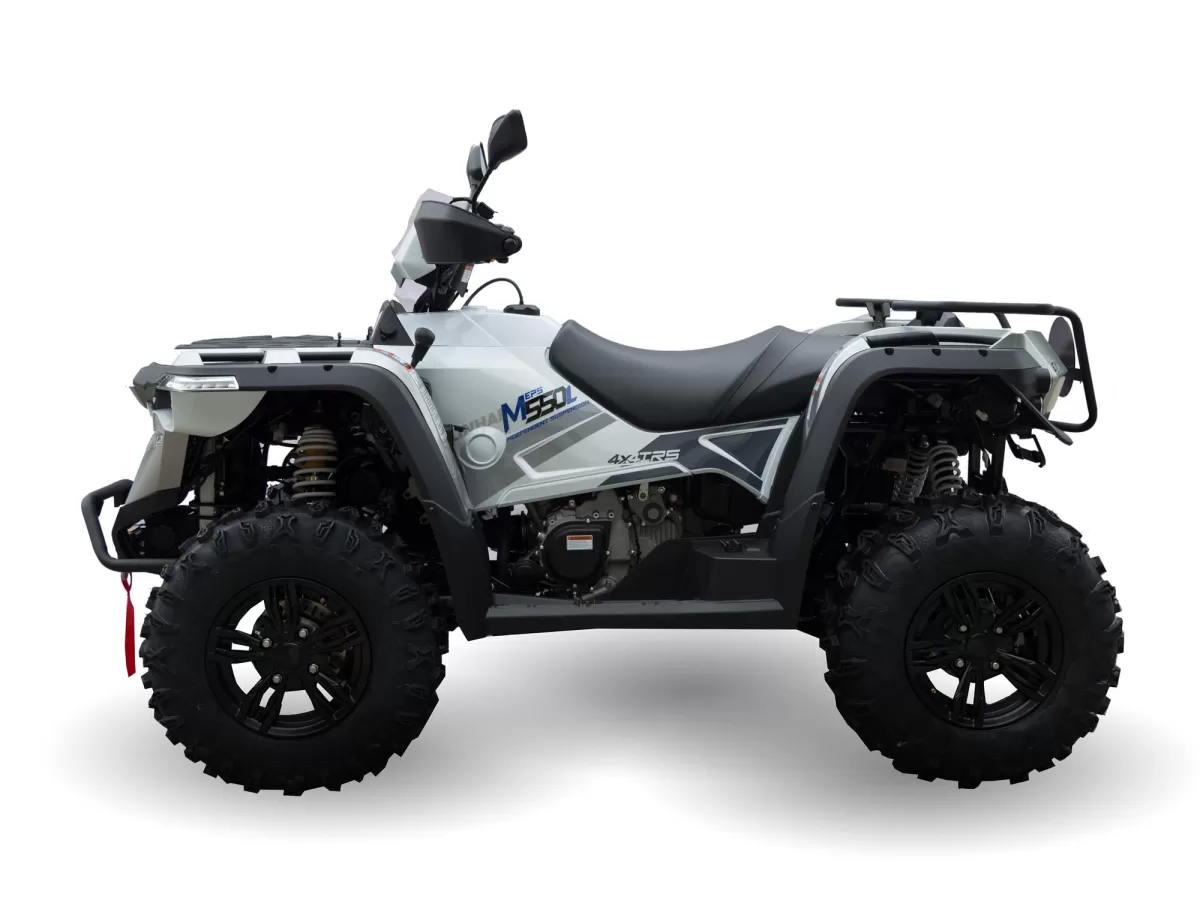

| M550L (EFI&EPS) | |
|---|---|
| DIMENSIONS AND CAPACITIES | |
| Length×Width×Height | 2283x1300x1293 mm |
| Wheelbase | 1490 mm |
| Seat Height | 900 mm |
| Minimum Ground Clearance | 253 mm |
| Dry Weight | 365 Kg |
| Load Capacity | 204 Kg |
| Fuel Tank Capacity | 14.5 L |
| ENGINE | |
| Type NO. | LH188MR-A |
| Model | Singe cylinder,4 stroke,SOHC,liquid cooled,4 valve |
| Bore × Stroke | 87.5 × 82 mm |
| Displacement | 493 cc |
| Compression Ratio | 10.2:1 |
| Max Power | 24Kw /6500 r/min |
| Max Torque | 39 Nm/5500 r/min |
| Maximum Speed | 89 Km/h |
| Fuel Supply | EFI |
| Start Type | Electric Starter |
| Ignition Type | ECU |
| Transmission | CVT |
| Drive | Switchable 2WD/4WD |
| CHASSIS | |
| Brake System Model | Front:disc Rear:disc |
| Brake System Control Model | Front:hand brake,foot brake |
| Rear:hand brake,foot brake | |
| Suspension | Front:Mcpherson independent suspension |
| Rear:Twin-A arm independent suspension | |
| Specification of Tire | Front:AT25×8-12 |
| Rear:AT25×10-12 | |
| Colors available | red black white |
| Homologation | EEC & EPA |
| Type No. | LH188MR-A | |
| Model | single cylinder,4 stroke, water cooled,4-valve | |
| Stroke and bore | 87.5mm×82mm | |
| Cylinder dimension，ml | 493 | |
| Rated power，kW/r/min | 24kw/6500(r/min) | |
| Max torque nm/r/min | 38.8N.m/5500(r/min) | |
| Compression ratio | 10.2:1 | |
| Ignition type | TCI | |
| Start type | electric start |
